Bootstrap

Bootstrapping refers to a self-starting process that is supposed to proceed without external input. Mainflux platform supports bootstrapping process, but some of the preconditions need to be fulfilled in advance. The device can trigger a bootstrap when:

• device contains only bootstrap credentials and no Mainflux credentials
• device, for any reason, fails to start a communication with the configured Mainflux services (server not responding, authentication failure, etc..).
• device, for any reason, wants to update its configuration

Bootstrapping and provisioning are two different procedures. Provisioning refers to entities management while bootstrapping is related to entity configuration.

Bootstrapping procedure is the following:

1) Configure device with Bootstrap service URL, an external key and external ID

Optionally create Mainflux channels if they don't exist

Optionally create Mainflux thing if it doesn't exist

2) Upload configuration for the Mainflux thing

3) Bootstrap - send a request for the configuration

4) Connect/disconnect thing from channels, update or remove configuration

Configuration

The configuration of Mainflux thing consists of two major parts:

• The list of Mainflux channels the thing is connected to
• Custom configuration related to the specific thing

Also, the configuration contains an external ID and external key, which will be explained later. In order to enable the thing to start bootstrapping process, the user needs to upload a valid configuration for that specific thing. This can be done using the following HTTP request:

curl -s -S -i -X POST -H "Authorization: <user_token>" -H "Content-Type: application/json" http://localhost:8200/things/configs -d '{
        "external_id":"09:6:0:sb:sa",
        "thing_id": "1b9b8fae-9035-4969-a240-7fe5bdc0ed28",
        "external_key":"key",
        "name":"some",
        "channels":[
                "c3642289-501d-4974-82f2-ecccc71b2d83",
                "cd4ce940-9173-43e3-86f7-f788e055eb14",
                "ff13ca9c-7322-4c28-a25c-4fe5c7b753fc",
                "c3642289-501d-4974-82f2-ecccc71b2d82"
],
        "content": "config..."
}'

In this example, channels field represents the list of Mainflux channel IDs the thing is connected to. These channels need to be provisioned before the configuration is uploaded. Field content represents custom configuration. This custom configuration contains parameters that can be used to set up the thing. It can also be empty if no additional set up is needed. Field name is human readable name and thing_id is an ID of the Mainflux thing. This field is not required. If thing_id is empty, corresponding Mainflux thing will be created implicitly and its ID will be sent as a part of Location header of the response.

There are two more fields: external_id and external_key. External ID represents an ID of the device that corresponds to the given thing. For example, this can be a MAC address or the serial number of the device. The external key represents the device key. This is the secret key that's safely stored on the device and it is used to authorize the thing during the bootstrapping process. Please note that external ID and external key and Mainflux ID and Mainflux key are completely different concepts. External id and key are only used to authenticate a device that corresponds to the specific Mainflux thing during the bootstrapping procedure.

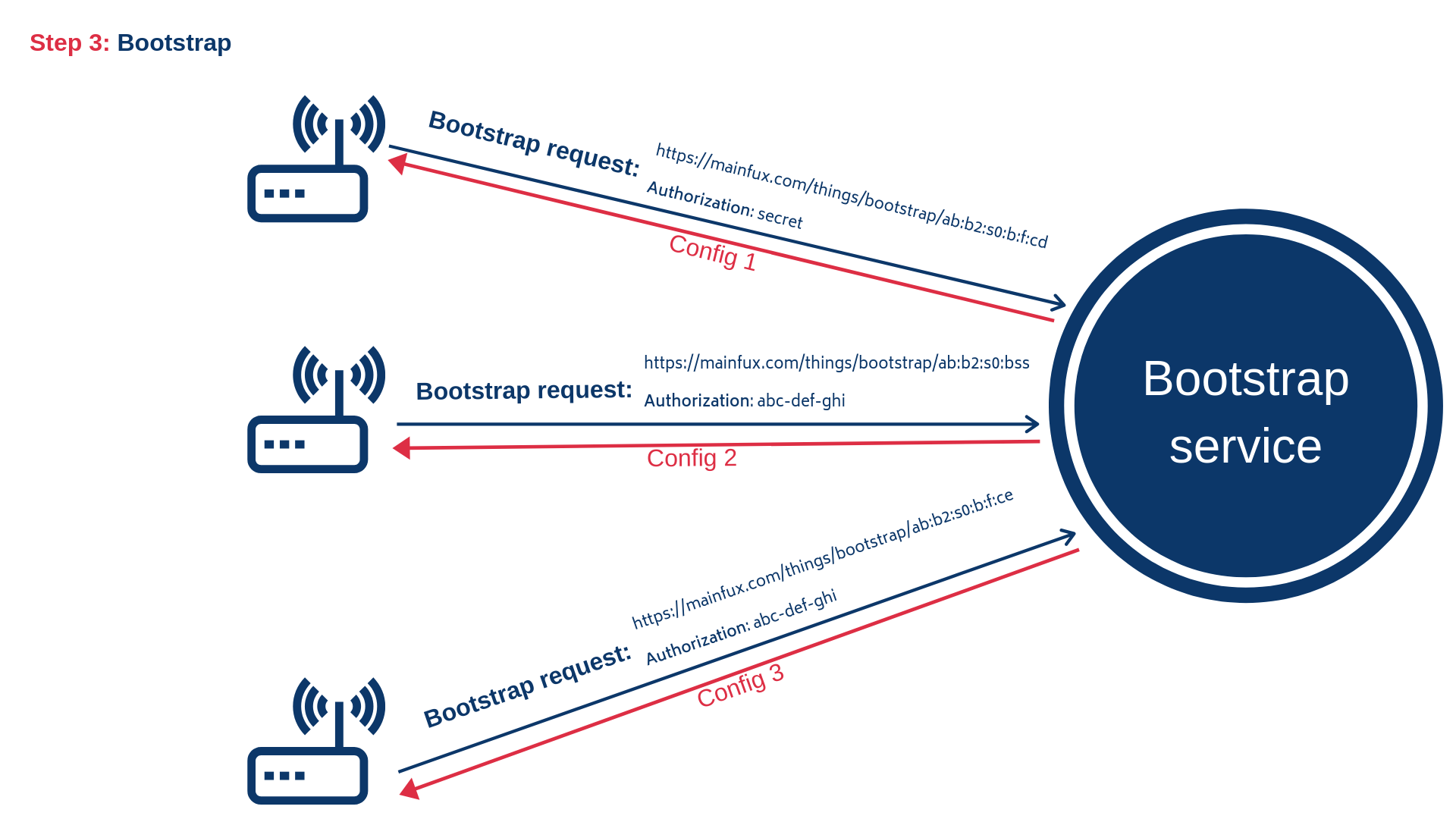

Bootstrapping

Currently, the bootstrapping procedure is executed over the HTTP protocol. Bootstrapping is nothing else but fetching and applying the configuration that corresponds to the given Mainflux thing. In order to fetch the configuration, the thing needs to send a bootstrapping request:

curl -s -S -i -H "Authorization: <external_key>" http://localhost:8200/things/bootstrap/<external_id>

The response body should look something like:

{
   "mainflux_id":"7c9df5eb-d06b-4402-8c1a-df476e4394c8",
   "mainflux_key":"86a4f870-eba4-46a0-bef9-d94db2b64392",
   "mainflux_channels":[
      {
         "id":"ff13ca9c-7322-4c28-a25c-4fe5c7b753fc",
         "name":"some channel",
         "metadata":{
            "operation":"someop",
            "type":"metadata"
         }
      },
      {
         "id":"925461e6-edfb-4755-9242-8a57199b90a5",
         "name":"channel1",
         "metadata":{
            "type":"control"
         }
      }
   ],
   "content":"config..."
}

The response consists of an ID and key of the Mainflux thing, the list of channels and custom configuration (content field). The list of channels contains not just channel IDs, but the additional Mainflux channel data (name and metadata fields), as well.

Enabling and disabling things

Uploading configuration does not automatically connect thing to the given list of channels. In order to connect the thing to the channels, user needs to send the following HTTP request:

curl -s -S -i -X PUT -H "Authorization: <user_token>" -H "Content-Type: application/json" http://localhost:8200/things/state/<thing_id> -d '{"state": 1}'

In order to disconnect, the same request should be sent with the value of state set to 0.

For more information about Bootstrap API, please check out the API documentation.
